Resources Tutorial

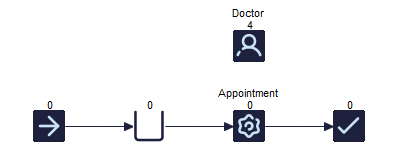

We use Resources to constrain an Activity, i.e. so that something in your process cannot happen if the relevant Resource is unavailable. At the moment, our Activities can run whenever a Work Item is ready to pass through. We can change this so that a Resource is required at an Activity.

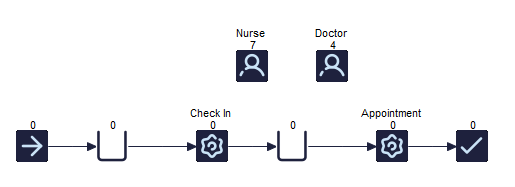

When you drag a Resource onto your screen, it looks something like the image above. You can change the name of a Resource and the quantity available by selecting the Resource and using the ribbon. For example, our Activity is an Appointment and the Resource is a doctor, and we have 4 available.

When should I model Resources?

You should include Resources in your model in 2 situations; 1 - If you have Capacity issues (i.e. if you have too little or too much Resource) 2 – If the number of Resources you have available is Variable (i.e. more staff on during the day than at night)

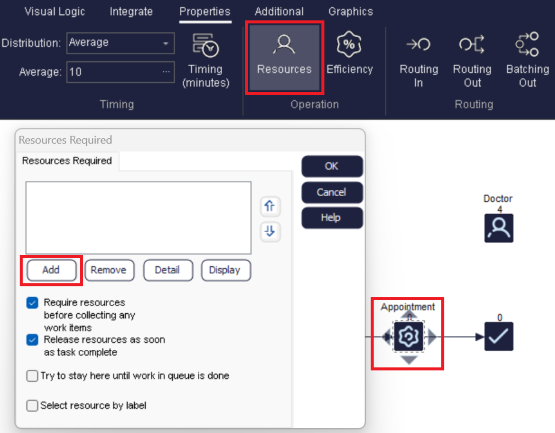

To assign a Resource, you can either; 1. Click and drag with the Shift key held down (like drawing a routing arrow) or 2. Click on an Activity, go to Resources on the Ribbon, and add the appropriate resource using this dialog:

You can assign several different types of Resource to one Activity , and an individual Resource can also be assigned to many different Activities. This gives a lot of flexibility when incorporating resources into your model.

If you click on a Resource, all Activities where it is assigned will be highlighted in red. You can also see an overview of this in the Resource Matrix (Build → Resource Matrix)

It is possible to setup your Resource so that it stays with a Work Item through several steps in your process. This is particularly useful for things like hospital beds, which will usually be used during a patient’s stay in hospital, and then released when the patient leaves.

The default setting is that when you assign a Resource to an Activity, the Resource is ‘required’ at the beginning of the Activity, and then ‘released’ when the Activity is complete. You can change this so that, instead of being released when an Activity finishes, the assigned Resource is retained, and stay with the Work Item until you say otherwise.

We will explore these options with the example below;

In this example we have a Doctor’s Office where the Nurse is needed both at Check In and at the Appointment while Doctors are only needed at the Appointment. We can set this up so that a Nurse stays with a Passenger during the process of Checking In until the end of the Appointment.

First, assign the Nurse Resource to both Activities either in the Activities or via the Routing Arrows.

Select the Check In Activity and click on ‘Resources’ on the ribbon. Then click on ‘Detail’, and you should see the following Dialog.

The four options on the bottom half of the second Dialog give you the option to change the default Resource requirements. The top option is the default.

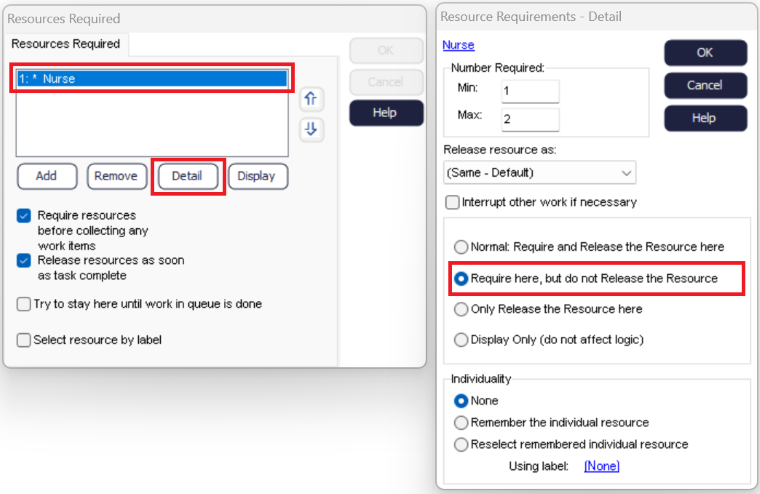

We want to change this so that we do not release our Resource after the Check In Activity. Select the second option: ‘Require here, but do not Release the Resource’. This means that the Resource will stay with the Work Item until you tell it otherwise.

We now need to set our example up so that we release our Resource after the Appointment Activity.

Select the Appointment Activity, and access the same dialog as before (Ribbon → Resources → Detail)

This time we want to ‘release’ the Resource, as they are no longer required after the end of the Activity.

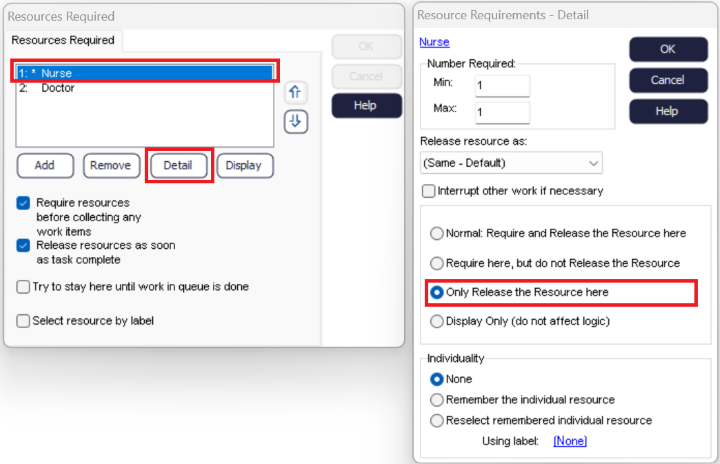

Select the third option, ‘Only Release the Resource here’. We already have a Resource with our work item from the previous Check In Activity, so we don’t need to Require another one. All we need to do is tell our model to let the Resource go after ‘Appointment’.

So far we have assumed that we always have the same number of Resources available regardless of the time of day. In reality, this is likely to change, and different quantities of Resource may be available on different Shifts.

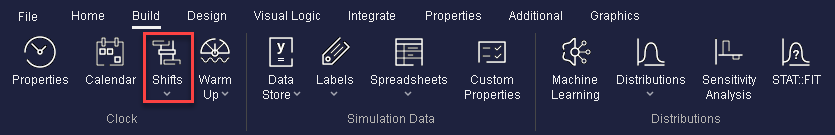

Shifts can be created by using the ‘Shift’s button on the Build tab.

Tell your model the Start Time, End Time and Days of the Week your Shift runs on.

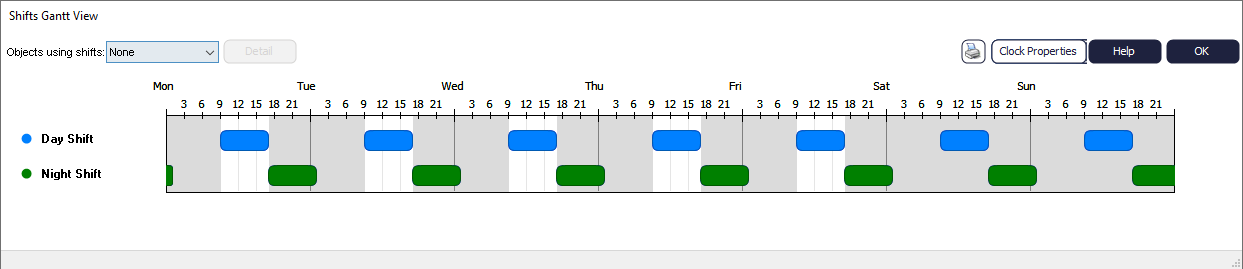

Use the Gantt Button to see a graphical representation of your Shifts.

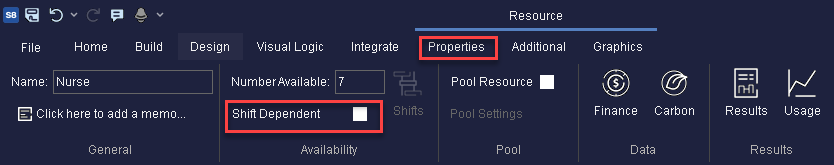

Once you have set up your Shifts, you can change the number of Resources available per Shift. Select your Resource, and have a look on the Ribbon. Instead of the ‘Number Available’ box, check the box for ‘Shift Dependent’. This will give you the option to enter the number of Resources available per shift.

Once you reset your model, you will see that the small number above each Resource depends on what time of day it is (i.e. which shift is currently running).

Not necessarily; some Resources may have the same number available regardless of what time of day it is (e.g. Hospital beds, or machinery in a factory). You do not have to make your Resource Shift Dependent if the number available does not vary.
